Техническо описание:
Chipset: GX3235S
Flash: 4M embedded in Chipset:
Memory: 512M DDR2 embedded in Chipset
Tuner: RT850, 75 Ohm, -85~25dBm
5v output, 6/7/8MHz band width
1K,2K,4K,8K,16K,32K FFT Mode
1/2, 2/3, 3/4, 4/5, 5/6 Code Rate
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256 Guard Interval
256QAM, 64QAM, 16QAM and 4QAM
Front Panel:
USB Port: 1xUSB 2.0 Port

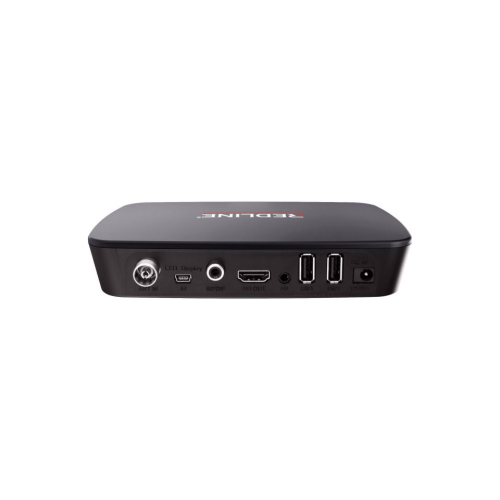

Rear Panel
RF IN: DVB-T/T2&C signal input from Antenna
HD OUT: HDTV cable output for TV's HDTV Port
SCART: Scart cable output for TV's SCART port
DV-5V: 5V Power supply from adaptor
Hardware Features
Demodulation: DVB-T/T2&C
Video Decoder: MPEG-2/MPEG-4/H.264 SD/HD, MP/HP L4.1
Analog Video Output: MPEG1, MPEG2, PCM, 32/44.1/48KHz
Input Voltage: Power adapter, AC 100~250V, 50/60Hz
Consumption: Max 8W---working, Max 1W---standby
USB WIFI Dongle: Support Ralink 7601 & 5370 USB WIFI dongle
Software Features
Media Player: MKV/AVI/MPG/TS/MP4/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG
Software Upgrade: Upgrade by USB Disk or by Network
Channel Editor: Support Rename/Sort/Skip/Lock/Move/Delete channel
PVR&TimeShift: Support powerful USB PVR and TimeShift function
Channel Search: Manual Scan, Auto Scan
USB Disc File System: Support FAT/FAT32/NTFS, move than IT disk capacity
Basic Function: 7Days EPG, TeleText, Subtitle, Fav. Groups, NIT, Timer
OSD Language: English, Romanian, Serbian, Türkiye, Bosnian, Bulgarian, Croatian, Greece
Network Application: Youtube, Weather and Cinema
